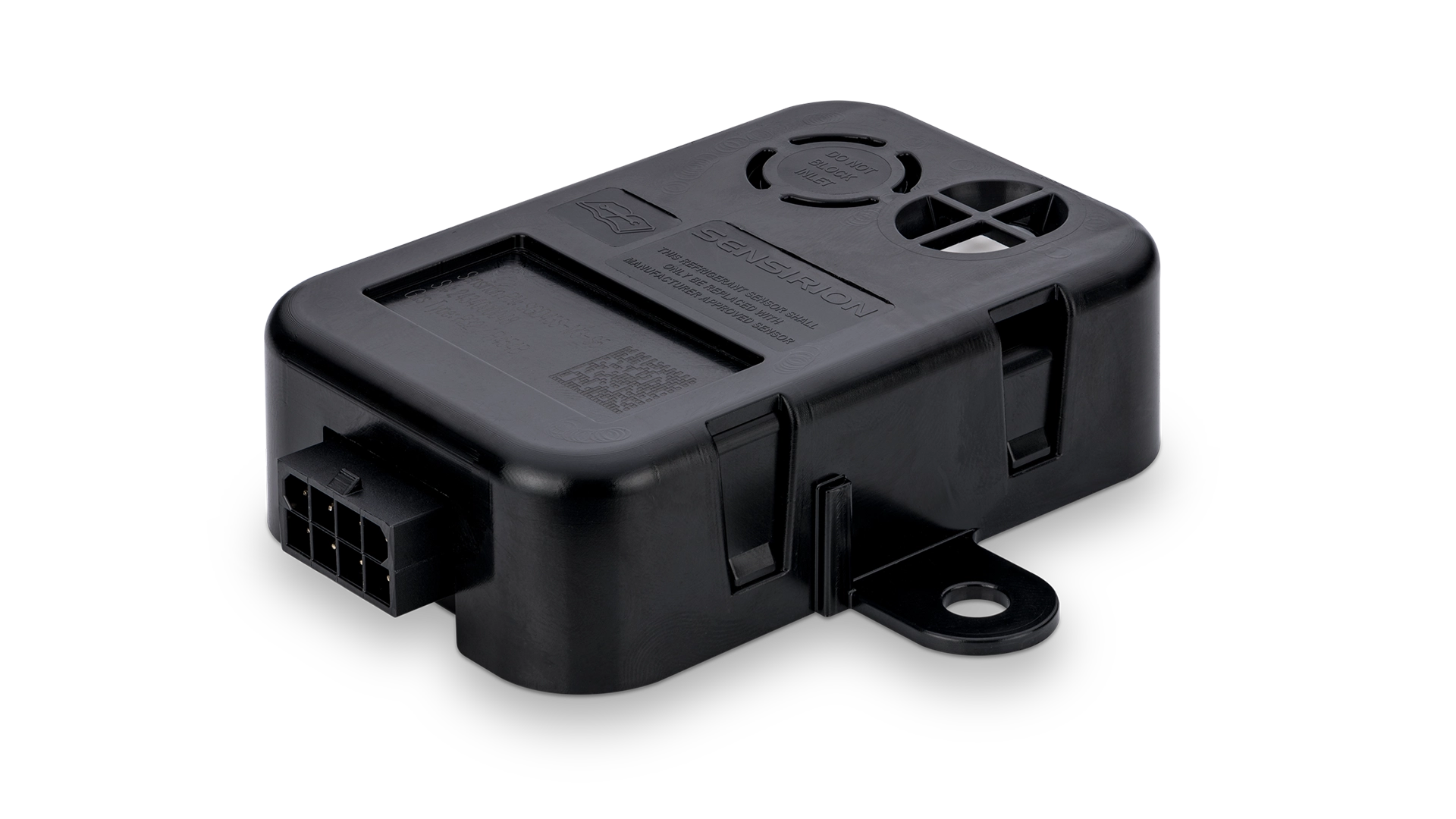

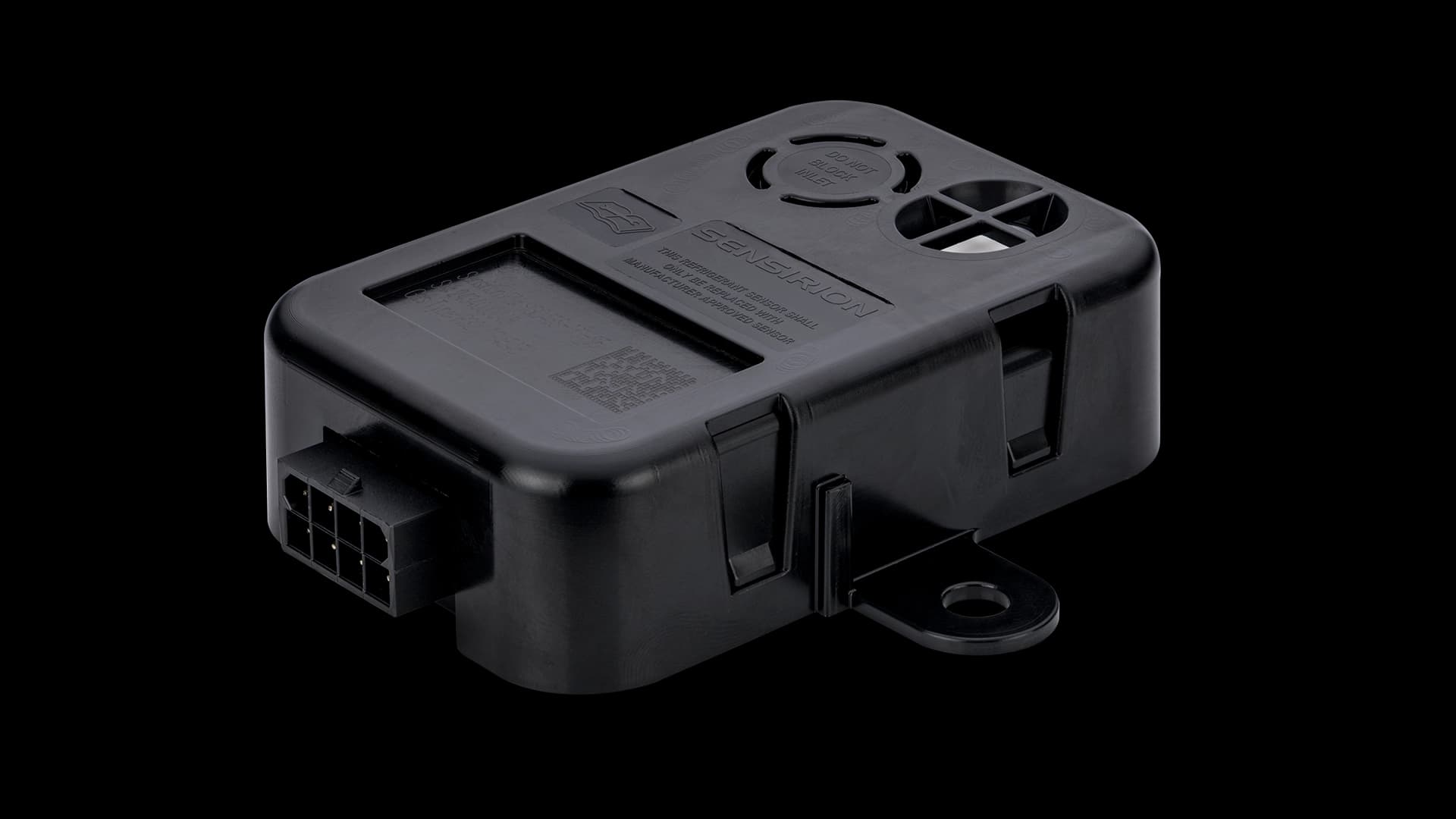

SGD43S-M3-Sx refrigerant leakage detection system
Start testing the SGD43S-M3-Sx
The SGD43S features 24V AC/DC input, a dual relay switch output, an RS-485 serial interface, and a dual color status light.
Product catalogueKey facts
| Product type | Measures | Feature |
| SGD43S-M3-S5 | R-32, R-454B | UL-recognized sensor and refrigerant detection system |
| SGD43S-M3-S7 | R-454A, R-454C, R-455A | UL-recognized sensor and refrigerant detection system |
Start prototyping
Find everything you need here.
The SGD43S-M3-Sx is part of our SGD4x series of A2L refrigerant detection products, specifically designed for the HVACR industry as a complete refrigerant detection system (RDS). It is based on the thermal conductivity measurement principle and features a dual contact relay output that can trigger a signal relay to start a blower, switch off the load or warn a control board. Easy integration and installer-friendly feedback is enabled by a status-indicating LED for quick visual feedback.
With its fast response time and broad compatibility with A2L refrigerants thanks to its versatile multi-refrigerant calibration, the SGD43S-M3-Sx is an essential component for both residential and commercial HVACR systems. The SGD43S-M3-Sx ensures effective leak detection and complies with stringent industry standards, including UL 60355-2-40 and UL 60335-2-89. The single unit is triple calibrated for R-454A, R-454C and R-455A in refrigeration applications.
Evaluate without writing code
In a few simple steps, you will be collecting valuable data without needing any coding skills.
How it works
- Order a SGD43S-M3-S5 or a SGD43S-M3-S7 via our distribution network
- Order a USB to RS-485 cable, along with the evaluation cable with harness via our distribution network
- Assemble the evaluation cables as described in the starting guide
- Download the ControlCenter viewer software
- Connect the SGD43S-M3-Sx to your computer and start measuring refrigerant leaks
